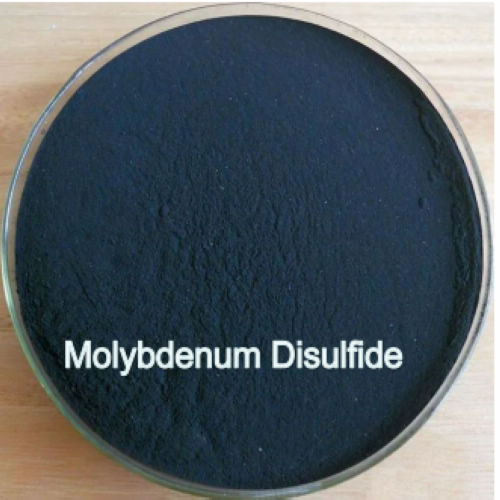

As the main component of molybdenite, molybdenum disulfide is black solid powder with metallic luster. Molybdenum disulfide has stable properties. Molybdenum disulfide is insoluble in water, dilute acid and concentrated sulfuric acid. Generally, molybdenum disulfide is insoluble in other acids, alkalis and organic solvents, but molybdenum disulfide is soluble in aqua regia and boiled concentrated sulfuric acid.
Molybdenum Disulfide is a lubricant grade of molybdenum disulfide (MoS2) available in three grades-Technical, Technical Fechnical Fine, and Super Fine.Typical MoS2 content (calculated average) is 98.5%.
Molybdenum Disulfide is a good solid lubricant that can be lubricated in a vacuum or air environment for a long time. The friction coefficient is relatively low, and Molybdenum Disulfide can be lubricated for a long time in the air below 350℃.
With more than ten years of R&D experience, it can provide an annual output of 1,000 tons of Molybdenum Disulfide as a patented technology product.
Molybdenum Disulfide
Introduction
As the main component of molybdenite, molybdenum disulfide is black solid powder with metallic luster. Molybdenum disulfide has stable properties. Molybdenum disulfide is insoluble in water, dilute acid and concentrated sulfuric acid. Generally, molybdenum disulfide is insoluble in other acids, alkalis and organic solvents, but molybdenum disulfide is soluble in aqua regia and boiled concentrated sulfuric acid.
Molybdenum Disulfide is a good solid lubricant that can be lubricated in a vacuum or air environment for a long time. The friction coefficient is relatively low, and Molybdenum Disulfide can be lubricated for a long time in the air below 350 ℃.
With more than ten years of R&D experience, it can provide an annual output of 1,000 tons of Molybdenum Disulfide as a patented technology product.
Molybdenum Disulfide is a lubricant grade of molybdenum disulfide (MoS2) available in three grades-Technical, Technical Fechnical Fine,and Super Fine.Typical MoS2 content (calculated average) is 98.5%.
Chemical Specifications of Molybdenum Disulfide：
Maximum % by wt | Maximum % by wt | Maximum % by wt | |
Technical | Technical Fine | Super Fine | |
Acid Insoluble | 0.50 | 0.50 | 0.50 |
Iron | 0.25 | 0.25 | 0.25 |
Molybdenum Trioxide | 0.10 | 0.10 | 0.15 |
Water | 0.20 | 0.20 | 0.20 |
Oil | 0.05 | 0.40 | 0.40 |
Carbon | 0.50 | 0.50 | 0.50 |
Acid Number | 0.05 | 0.50 | 3.0 |
*Acid number is determined at time of production. Prolonged storage will result in slight oxidation,which will produce an increase in acid number.The smaller particle size grades are more susceptible to surface oxidation.Acid number is expressed as an absolute value and is the mg of KOH required to neutralize the acid in a one-gram sample.
Particle Size Specifications of Molybdenum Disulfide By Microtrac：
Grade | D50 | D99(Maximum) |
Technical | 16.0-30.0μm | 180μm |
Technical Fine | 4.0-6.0μm | 35.0μm |
Super Fine | 0.9-1.5μm | 6.5μm |
Typical Particle Size of Molybdenum Disulfide By Microtrac By Fisher Sub-sizer and Bulk Density:
Grade | Fisher Number, μm | Bulk Density(Scott) |
Technical | 3 to 4 | 1.3g/cm3 |
Technical Fine | 0.65 to 0.80 | 0.4g/cm3 |
Super Fine | 0.40 to 0.45 | 0.3g/cm3 |
Packaging of Molybdenum Disulfide ：
Grade | US Packaging Fiber Drum | Pallet weight |
Technical | 25kg | 450kg |
Technical Fine | 25kg | 450kg |
Super Fine | 25kg | 450kg |
18 drums/pallet | ||
Figure 1: Crystal structure of monolayer MoS2 （Monolayer molybdenum disulfide crystal structure）
Shown：A layer of molybdenum atoms (blue) sandwiched between two layers of sulfur atoms (yellow)
Figure 2: Applications of MoS2 （Molybdenum disulfide application diagram）
Molybdenum Disulfide Powder are widely used in Lubricant , Plastic modification , Grease , Brush , Valve guide and Brake pads.
Figure 3: Packaging of MoS2 （Molybdenum disulfide packaging diagram）
